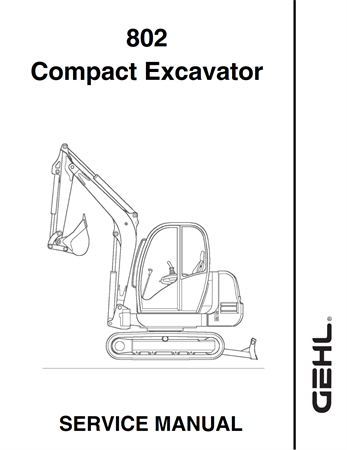

Original Factory Service Repair Manual for the Gehl 802 Compact Excavator.
This manual is very detailed and contains all the official Gehl manufacturer specifications, repair instructions step by step with illustrations and wiring diagrams. Simple to complicated repairs can be completed effortlessly with the information provided. It is 100 percent complete and intact. The manual is specifically written for the DIY as well as the experienced mechanic.
Contents as Follows:
Chapter A: Technical data
Dimensions
Bucket and Geometry
Lift Capacity Chart
Hydraulic System
Diesel Engine Specifications
Chapter B: Maintenance
Maintenance Chart
Maintenance General
Lubricants
Lubrication Chart (points)
Hydraulic System
Hydraulic Pump
Hose Burst Protection Valve
Drive Unit
Swivel Unit
Diesel Engine
Undercarriage
Hydraulic Oil Tank
Fuel Tank
Chapter C: Hydraulic
Hydraulic System / Diagrams
Position of Components
Hydraulic Pump
Pilot Oil Supply Unit
Main Valve Block
Second Valve Block
Pilot Control Valves
Swivel Unit
Shuttle Valves (swivel motor brake)
Drive Unit
Swivel Joint
Switch Valve
Load Lowering Valve
Hydraulic Oil Tank
Chapter D: Diesel Engine
Diesel Engine Specifications
Chapter E: Electrical
Electrical Wiring Diagram (up to serial number AB00473)
Relay Position
Solenoid Stop
Glow Control Lamp Relay Plug
Fuse Box
Electrical Wiring Diagram (from serial number AB00473)
Armrest Connections
Chapter F: Operating Elements
Component Designation
Joystick Consoles Component Designation
Joystick Functions
Auxiliary Hydraulics / Arm Swing
Lifting the Excavator
Torque Specifications
———————-
Model Specification: Gehl 802 Compact Excavator
Language: English
Total Pages: 156
File Format: PDF
Requirements: Adobe PDF Reader
Zoom In/Out: yes
Notes: Bookmarked, searchable, Fully printable, instant download
Compatible: All Versions of Windows & Mac, Linux OS, Iphone, Ipad, Smartphone, Android etc…
———————-
