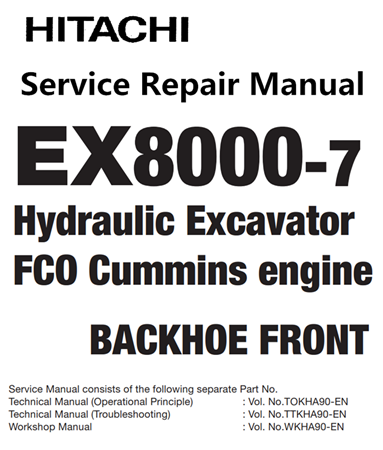

Original Factory Service Repair Manual for the Hitachi EX8000-7 Hydraulic Excavator (FC0 Cummins Engine).
Service Manual consists of the following separate volumes:
Technical Manual (Operational Principle)
Technical Manual (Troubleshooting)
Workshop Manual
Electrical and Hydraulic Circuit Diagrams
EX8000-7 Fault Code List
This manual is very detailed and contains all the official Hitachi manufacturer specifications, troubleshooting, repair instructions step by step with illustrations and wiring diagrams. Simple to complicated repairs can be completed effortlessly with the information provided. It is 100 percent complete and intact. The manual is specifically written for the DIY as well as the experienced mechanic.
CONTENTS AS FOLLOWS:
Workshop Manual Contents:
SECTION 1 GENERAL INFORMATION
Group 1 Precautions for Disassembling and Assembling
Group 2 Tightening Torque
Group 3 Bleed Air From Hydraulic Oil Tank
SECTION 2 UPPERSTRUCTURE
Group 1 Cab
Group 2 Counterweight
Group 3 Pump Device
Group 4 Control Valve
Group 5 Swing Device
Group 6 DQR Valve
Group 7 Fan Drive Motor
Group 8 Solenoid Valve
Group 9 Shuttle Valve
Group 10 Block Valve with Sliding Fold-in Ladder
Group 11 Compressor Drive Motor
Group 12 Air Conditioner
Group 13 Lift Cylinder
SECTION 3 UNDERCARRIAGE
Group 1 Swing Bearing
Group 2 Travel Device
Group 3 Travel Brake Valve
Group 4 Drive Tumbler
Group 5 Center Joint
Group 6 Adjuster Cylinder
Group 7 Front Idler
Group 8 Upper and Lower Roller
Group 9 Track
Group 10 Accumulator
Group 11 Welding Repair Procedure
SECTION 4 FRONT ATTACHMENT
Group 1 Front Attachment
Group 2 Cylinder
Group 3 Bushing and Point
Group 4 Angle Indicator
Group 5 Solenoid Valve
Group 6 Valve
Technical Manual (Operational Principle) Contents:
SECTION 1 GENERAL
Group 1 Specifications
Group 2 Component Layout
Group 3 Component Specifications
SECTION 2 SYSTEM
Group 1 Controller
Group 2 Control System
Group 3 ELU System
Group 4 Hydraulic System
Group 5 Electrical System
Group 6 Air Conditioning System
SECTION 3 COMPONENT OPERATION
Group 1 Pump Device
Group 2 Swing Device
Group 3 Control Valve
Group 4 Control Equipment
Group 5 Travel Device
Group 6 Others (Upperstructure)
Group 7 Others (Undercarriage)
Group 8 Others (Front Attachment)
Technical Manual (Troubleshooting) Contents:
SECTION 4 OPERATIONAL PERFORMANCE TEST
Group 1 Introduction
Group 2 Standard
Group 3 Engine Test
Group 4 Machine Performance Test
Group 5 Component Test
SECTION 5 TROUBLESHOOTING
Group 1 Diagnosing Procedure
Group 2 Monitor
Group 3 Cross Reference Table
Group 4 Component Layout
Group 5 Troubleshooting for Each Code
Group 7 Air Conditioner
Group 8 e-Service
ATTACHED DIAGRAM LIST:
CONNECTORS
ELECTRICAL CIRCUIT DIAGRAM
HYDRAULIC CIRCUIT DIAGRAM
———————-
Model Specification: Hitachi EX8000-7 Hydraulic Excavator (FC0 Cummins Engine)
Language: English
File Format: PDF
Requirements: Adobe PDF Reader & WinZip
Zoom In/Out: yes
Notes: Bookmarked, searchable, Fully printable, instant download
Compatible: All Versions of Windows & Mac, Linux OS, Iphone, Ipad, Smartphone, Android etc…
———————-
