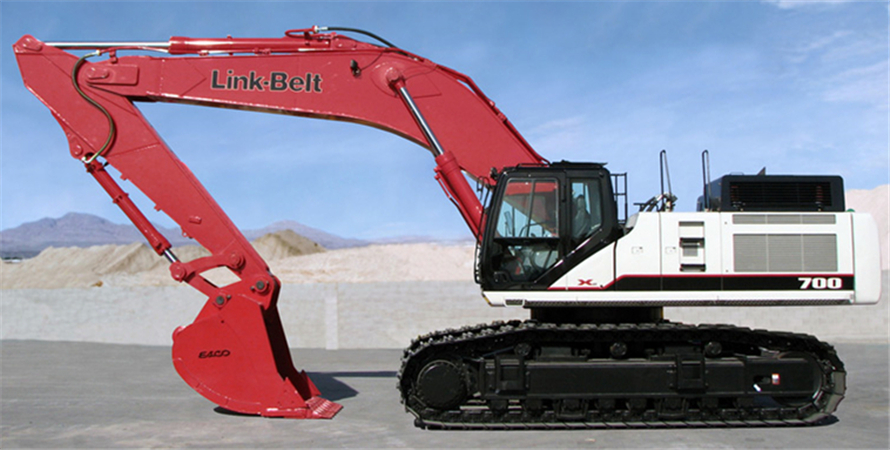

Original Factory Parts Manual for the Link-Belt 700 X2 Excavator.
It contains a complete list of parts for your machine it is also an excellent source of information for reassembling your machine.
This Parts Catalog outlines EVERY part on your Link-Belt 700 X2 Excavator.
Complete with exploded views, diagrams, part numbers, and part descriptions.
– There are parts grouped according to the location on the machine.
– Each group shows an exploded view which clearly illustrates each part in its correct relation to other parts in the illustration.
– You need a parts catalog, it saves you time, money and helps you be more informed when ordering parts.
CONTENTS AS FOLLOWS:
LOWERS
GROUSER SHOE 650 SEAL
GROUSER SHOE 750 SEAL
GROUSER SHOE 900 SEAL
LOWER UNDER COVER
TRACK GUARD (DOUBLE)
TRACK GUARD (FULL)
CENTER JOINT
RECOIL SPRING
TRACTION EQUIPMENT
LOWER FRAME
TRACTION MOTOR LINE
UPPER ROLLER
TAKE-UP ROLLER
LOWER ROLLER
COVER
SWING FRAMES
COUNTER WEIGHT
COUNTER WEIGHT
UPPER UNDER COVER
TURN TABLE BEARING
CATWALK
COUNTER WEIGHT EQUIPMENT
REVOLVING FRAME
REVOLVING FRAME
BOLT
GREASE LINE
REVOLVING SHAFTS AND EQUIPMENT
REVOLVING EQUIPMENT
ENGINES
ENGINE (ISUZU)
ENGINE (ISUZU)
MUFFLER (STANDARD)
RADIATOR (STANDARD)
AIR CLEANER (ELEMENT)
FUEL TANK
FUEL LINE
CONTROL & LINES
SERVICE VALVE PORT RELIEF
SINGLE PEDAL CONTROL
SERVICE VALVE CONTROL (R )
JOYSTICK CONTROL
DRAIN LINE
BUCKET & ARM LINE
PILOT PRESS & RETURN LINE
BOOM LINE
SUMP TANK
RETURN & OIL COOLER LINE
CONTROL VALVE
PILOT CONTROL LINE
SECOND OPTION LINE S-V
PLUG TANK; FUEL
PLUG
PLUG
PLUG
PLUG
PLUG
PLUG
PLUG
PLUG
SINGLE ACTING CIRCUIT
DOUBLE ACTING CIRCUIT
MULTI-PURPOSE + 3WAY VALVE
HYDRAULIC PUMP
FLOOR MAT
PRESSURE LINE
SUCTION LINE
SWING LINE
TRACTION LINE
OPERATOR’S CAB & HOUSE
CAB GUARD (FOPS LEVEL 2) LBX
CAB FRONT GUARD MESH LOWER
CAB FRONT GUARD MESH UPPER
CAB FRONT GUARD OPG LEVEL 1
CAB FRONT GUARD OPG LEVEL 2
CAB FRONT GUARD OPG LEVEL1
CAB FRONT GUARD MESH UPPER
COVER (VANDAL GUARD)
CAB HEAD GUARD
OPERATOR’S CAB LB POLYCA-HATCH
OPERATOR’S CAB LB POLYCA-HATCH
HOUSE
HOUSE
CONSOLE BOX & SEAT (AIR-SUS)
DOG CHAIN
RAIN REFLECTOR
ACCESSORIES & NAME PLATE
PAINTING
NAMEPLATE (PEDAL CONTROLS STD)
NAMEPLATE (KNOB CONTROLS W/ RH AUX)
NAMEPLATE (KNOB CONTROLS W/ RH& LH AUX)
NAMEPLATE (KNOB CONTROLS W/ LH AUX)
NAME PLATE (ENGLISH)
REAR VIEW MIRROR
SPARE PARTS KIT
REPAIR PARTS KIT
TOOLS
OPERATOR’S NAME PLATE
OPERATOR’S NAME PLATE
LABEL
ELECTRIC PARTS
AM/FM RADIO HIGH BAND
AIR CONDITIONER – CAB
AIR CONDITIONER – FRAME
WORKING LIGHT (UPPER CAB)
WORKING LIGHT (CAB W/F.GUARD)
WORKING LIGHT (CAB W/YF.GUARD)
WORKING LIGHT (BOOM & HOUSE)
WORKING LIGHT (EXP)
BACK-UP ALARM
WINDOW WASHER
COVER
CONTROLLER
DC-DC CONVERTER (12V-10A)
STAND REAR
INDICATOR SENSOR
ELEC. PARTS & WIRE HARNESS
ELEC. PARTS & WIRE HARNESS (FRAME)
BATTERY
HORNS
ATTACHMENTS
ARM (STD) (3.55M) (11′ 8″)
ARM (STD) (3.55M) (11′ 8″)
ARM (LONG) (4.11M) (13′ 6″)
ARM (SUPER LONG) (5.00M) (16′ 5″)
ARM (SHORT) (3.02M) (9′ 11″)
ARM (SHORT) (3.02M) (9′ 11″)
ARM (SHORT) (3.02M) (9′ 11″)
ARM (SHORT) (3.02M) (9′ 11″)
BOOM (BACK HOE) (7.70M) (25′ 3″)
BOOM (BACK HOE) (7.70M) (25′ 3″)
BOOM (SHORT) (6.58M) (21′ 7″)
BOOM (SHORT) (6.58M) (21′ 7″)
BOOM (SHORT) (6.58M) (21′ 7″)
BOOM (SHORT) (6.58M) (21′ 7″)
BUCKET LINKAGE (STANDARD)
OPTION LINE(BAR BASE)(STD ARM)(3.55M)(11′ 8″)
OPTION LINE(BAR BASE)(LONG ARM)(4.11M)(13′ 6″)
OPTION LINE(BAR BASE)(SHORT ARM)(3.02M)(9′ 11″)
OPTION LINE(BAR BASE)(MASS ARM)(3.02M)(9′ 11″)
OPTION LINE(BAR BASE)
OPTION LINE(BAR BASE)(SHORT ARM)(3.02M)(9′ 11″)
ARM CYLINDER LINE
ARM CYLINDER LINE
ARM CYLINDER LINE
GREASE LINE
GREASE LINE
GREASE LINE
GREASE LINE
GREASE LINE (BOOM SHORT)(6.58M)(21′ 7″)
GREASE LINE (ARM SHORT) (3.02M) (9′ 11″)
GREASE LINE (BOOM SHORT)(6.58M)(21’7″)
GREASE LINE (ARM SHORT) (3.02M) (9′ 11″)
BUCKET CYLINDER LINE
BUCKET CYLINDER LINE (LONG ARM)(4.11M)(13′ 6″)
BUCKET CYLINDER LINE (SUPER LONG ARM)(16′ 5″)
BUCKET CYLINDER LINE (SHORT ARM)(3.02M)(9′ 11″)
BUCKET CYLINDER LINE (MASS ARM)(3.02M)(9′ 11″)
BOOM CYLINDER LINE
SECOND OPTION LINE (STD ARM)(3.55M)(11′ 8″)
SECOND OPTION LINE
SECOND OPTION LINE
INNER PARTS
PUMP;HYD (Part# KWJ11250)
PUMP;GEAR (Part# KWH0019)
SPECIAL MOTOR (HYDRAULIC FAN) (Part# KWH0018)
MOTOR (Part# KWA0018)
MOTOR;SWING (Part# KWC10010)
CYL;HYD (Part# KUB0156)
CYL;HYD (Part# KUB0154)
CYL;HYD (Part# KUB0155)
CYL;BOOM (Part# KWV0019)
CYL;BOOM (Part# KWV0020)
CYL;BOOM (Part# KWV0010)
CYL;BOOM (Part# KWV0011)
CYL;ARM (Part# KWV0021)
CYL;ARM (Part# KWV0012)
CYL;BUCKET (Part# KWV0013)
CYL;BUCKET (Part# KWV10090)
CYL;BUCKET (Part# KWV0094)
VALVE;CONTROL (Part# KWJ11800)
VALVE;SOLENOID (Part# KUJ0288)
SOLENOID VALVE (Part# KHJ14000)
SOLENOID VALVE (Part# KHJ14520)
SOLENOID VALVE (Part# KRJ3557)
VALVE;REMOTE CONT (Part# KTJ2034)
VALVE;REMOTE CONT (Part# KHJ10450)
VALVE;REMOTE CONT (Part# KHJ17610)
SELECTOR VALVE (Part# KHJ12080)
VALVE;STOP (Part# KUV0311)
VALVE;CUSHION (Part# KWJ11300)
BLADE CONTROL VALVE (Part# KRJ5560)
VALVE;HOLDING (Part# KHJ1473)
RADIATOR (Part# KWH0002)
REDUCTION GEARS TRACTION (Part#
KWA0019)
AREA 83: ENGINE
ENGINE GASKET KIT
CYLINDER HEAD COVER
CYLINDER HEAD
CYLINDER BLOCK
OIL PAN AND LEVEL GAUGE
CAMSHAFT AND VALVE
CRANKSHAFT
TIMING GEAR CASE AND FLYWHEEL HOUSING
INLET MANIFOLD
EXHAUST MANIFOLD
VENTILATION SYSTEM
WATER PUMP AND CORROSION RESISTOR
THERMOSTAT AND HOUSING
WATER PIPING; ENGINE
FAN AND FAN BELT
TURBOCHARGER SYSTEM
TURBOCHARGER
FUEL INJECTION SYSTEM
FUEL FILTER AND BRACKET
FUEL PUMP AND PIPE
OIL COOLER AND OIL FILTER
OIL PUMP AND OIL STRAINER
OIL AND VACUUM PIPING; ENGINE
EMISSION PIPING
ENGINE ELECTRICAL CONTROL PARTS
STARTER
GENERATOR
COUPLING; INJECTION PUMP
POWER TAKE OFF; FLYWHEEL
WIRING HARNESS AND FUSE
FIXING PARTS; WIRING HARNESS
Part Index
———————-
Model Specification: Link-Belt 700 X2 Excavator
Language: English
Total Pages: 770
File Format: PDF
Requirements: Adobe PDF Reader
Zoom In/Out: yes
Notes: Searchable, Fully printable, instant download
Compatible: All Versions of Windows & Mac, Linux OS, Iphone, Ipad, Smartphone, Android etc…
———————-
Pay Today and Download the complete manual instantly. The download link will also be sent to your e-mail. So please make sure your email address is correct. Don’t Forget to Check Spam / Junk if can’t find the new message in your email inbox immediately.
Thanks for Visiting.
