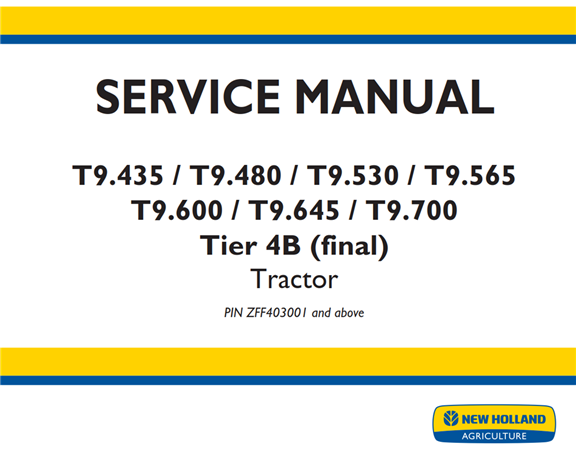

Original Factory Service Repair Manual for the New Holland T9.435 / T9.480 / T9.530 / T9.565 / T9.600 / T9.645 / T9.700 Tier 4B (final) Tractor.
This manual is very detailed and contains all the official New Holland manufacturer specifications, troubleshooting, repair instructions step by step with illustrations and wiring diagrams. Simple to complicated repairs can be completed effortlessly with the information provided. It is 100 percent complete and intact. The manual is specifically written for the DIY as well as the experienced mechanic.
Models & Serial Numbers:
T9.435 Standard wheeled model [ZFF403001 – ]
T9.480 Standard wheeled model [ZFF403001 – ]
T9.480 Heavy duty wheeled model [ZFF403001 – ]
T9.530 Heavy duty wheeled model [ZFF403001 – ]
T9.565 Standard wheeled model [ZFF403001 – ]
T9.600 Heavy duty wheeled model [ZFF403001 – ]
T9.600 Wheeled scraper model [ZFF403001 – ]
T9.600 Track ready models [ZFF403001 – ]
T9.645 Standard wheeled model [ZFF403001 – ]
T9.645 Heavy duty wheeled model [ZFF403001 – ]
T9.645 Wheeled scraper model [ZFF403001 – ]
T9.645 Track ready model [ZFF403001 – ]
T9.700 Standard wheeled model [ZFF403001 – ]
T9.700 Heavy duty wheeled model [ZFF403001 – ]
T9.700 Scraper model [ZFF403001 – ]
T9.700 Track ready model [ZFF403001 – ]
Contents as Follows:
Introduction
Engine
Power coupling
Transmission
Front axle system
Rear axle system
Power Take-Off (PTO)
Brakes and controls
Hydraulic systems
Hitches, drawbars, and implement couplings
Frames and ballasting
Steering
Wheels
Tracks and track suspension
Cab climate control
Electrical systems
Platform, cab, bodywork, and decals
Special Tool Index
ELECTRICAL SCHEMATIC POSTER – 47901803
HYDRAULIC SCHEMATIC POSTER – 47675127
———————-
Model Specification: New Holland T9.435 / T9.480 / T9.530 / T9.565 / T9.600 / T9.645 / T9.700 Tier 4B (final) Tractor
Product Identification Number: ZFF403001 and above
Edition: North America Version
Language: English
Total Pages: 5091
File Format: PDF
Requirements: Adobe PDF Reader
Zoom In/Out: yes
Notes: Bookmarked, searchable, Fully printable, instant download
Compatible: All Versions of Windows & Mac, Linux OS, Iphone, Ipad, Smartphone, Android etc…
———————-
